Introduction：
Specification
Materials: Kraft paper
Colour: Natural brown/ white/ black/
other colours upon request
Grammage: 60 - 110 gsm
Printing: Flexo with water-based ink

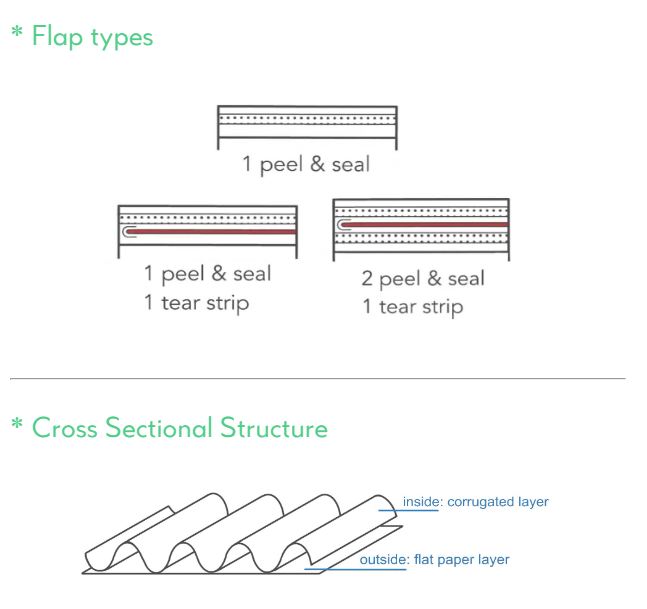

Flap shape: Rectangle or trapezium
Flap length: 1.6"(40mm) or 1.8"(45 mm)
Seal: 1 peel & seal strip + 1 tear strip
others customizable - see flap type options above
Adhesive: Hot melt
Flute types: E/F flute; single face
| Product Code | W x H | |
|---|---|---|
| (in.) | (mm) | |
| PC000 | 4.0 x 7.0 | 102 x 178 |
| PC00 | 5.0 x 9.0 | 127 x 229 |
| PC0 | 6.0 x 9.0 | 152 x 229 |
| PC1 | 7.25 x 11.0 | 184 x 279 |
| PC2 | 8.5 x 11.0 | 216 x 279 |
| PC3 | 8.5 x 13.5 | 216 x 343 |
| PC4 | 9.5 x 13.5 | 241 x 343 |
| PC5 | 10.5 x 15 | 267 x 381 |
| PC6 | 12.5 x 18.0 | 318 x 457 |
| PC7 | 14.25 x 19 | 362 x 483 |
* Available in 10 sizes.
* Other sizes upon request.
* All refer to inner/usable dimensions.
* Flap length is 1.6" or 40mm (for PC000-2); and 1.8" or 45mm (for PC3-7).
